Dip Switch Settings

Do not use Quick Config Settings as this only works with the Yamaha TF Series of consoles.

You can find the Dip Switches on the back of the unit. These will configure your unit for your Dante Network.

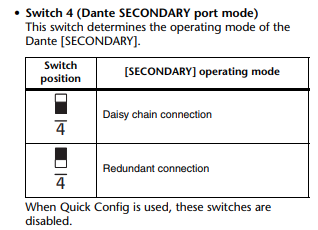

For a basic Daisy Chain network you can leave all switches in the UP position. Switch 4 will select a Daisy Chain or Redundant Setting.
