Fixture Profiles for MA

Downloading Profiles

  1. Go to https://fixtureshare.malighting.com/.
  2. Log in to Fixture Share. If you have not used Fixture Share before, create a free account.

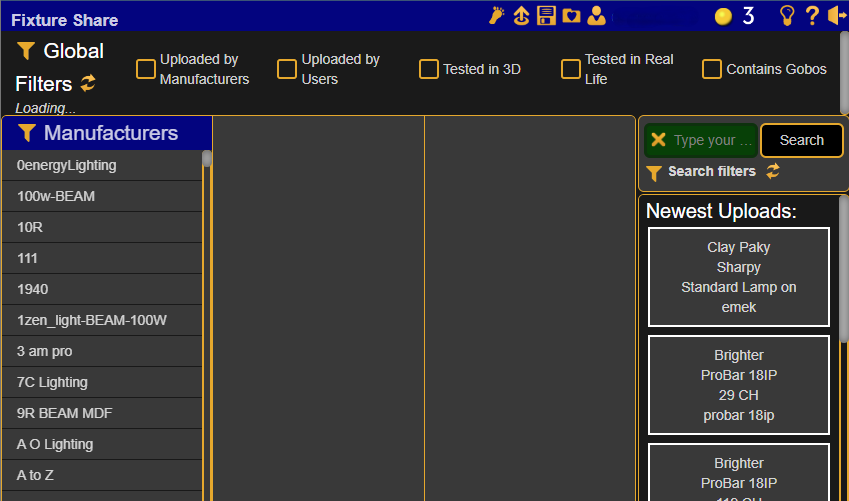

  3. Search for your fixture on the top, right side of the screen. You can filter your results by checking boxes at the top of the window (ex. "Uploaded by Manufacturers" or "Tested in Real Life").

    MA GMA2 Fixture Share - Google Chrome 9_19_2024 11_33_16 AM.png

  4. Browse the populated options for a profile that you want, cross-referencing the manual with the DMX Footprint in the bottom of the window.

    MAC One _ Basic _ 20240619NoMeas Uploaded to GDTF Share._1 _ MA Fixture Share - Google Chrome 9_19_2024 12_32_53 PM.png

Importing Profiles

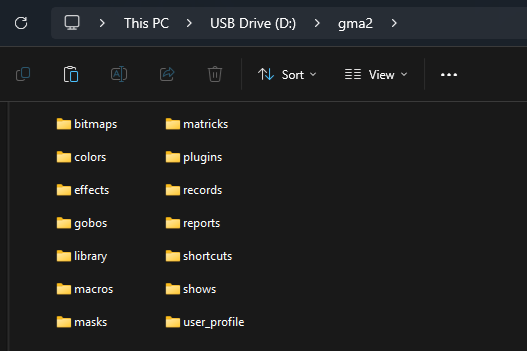

  1. Download the XML File and put it into the library folder in the gma2 folder on your USB drive. Your USB must be formatted to FAT32 and have a gma2 folder with the following folder structure. Backing up any show to your USB drive will automatically generate this folder structure.

    gma2 9_19_2024 12_42_20 PM.png

  2. Plug your USB into the console.
  3. Start your show file and go to your Patch and Fixture Schedule page.
  4. With the layer you want to use for this fixture highlighted, tap the "Fixture Types" softkey in the top right corner.
  5. Tap the "Import" softkey at the bottom of the screen.
  6. Tap the "Internal" button in the top right corner to toggle to the USB device. Your Fixture Profile should appear.

    Screen 2 9_19_2024 12_53_04 PM.png

  7. Tap import at the bottom right corner of the window.
