Image Repeating or Not Filling Screen// Recovering From Factory Reset

Issue Resembles:

Requires:

A wifi capable PC with Novastar LCT

1. Power on Poster & install Novastar

2. Connect to the Poster's Access Point & Launch Novastar

• The Access Point SSID is on the back of the Poster, the password is 12345678

3. Select Media Player Login from the User Dropdown in Novastar

4. Select the Poster and Click Connect System

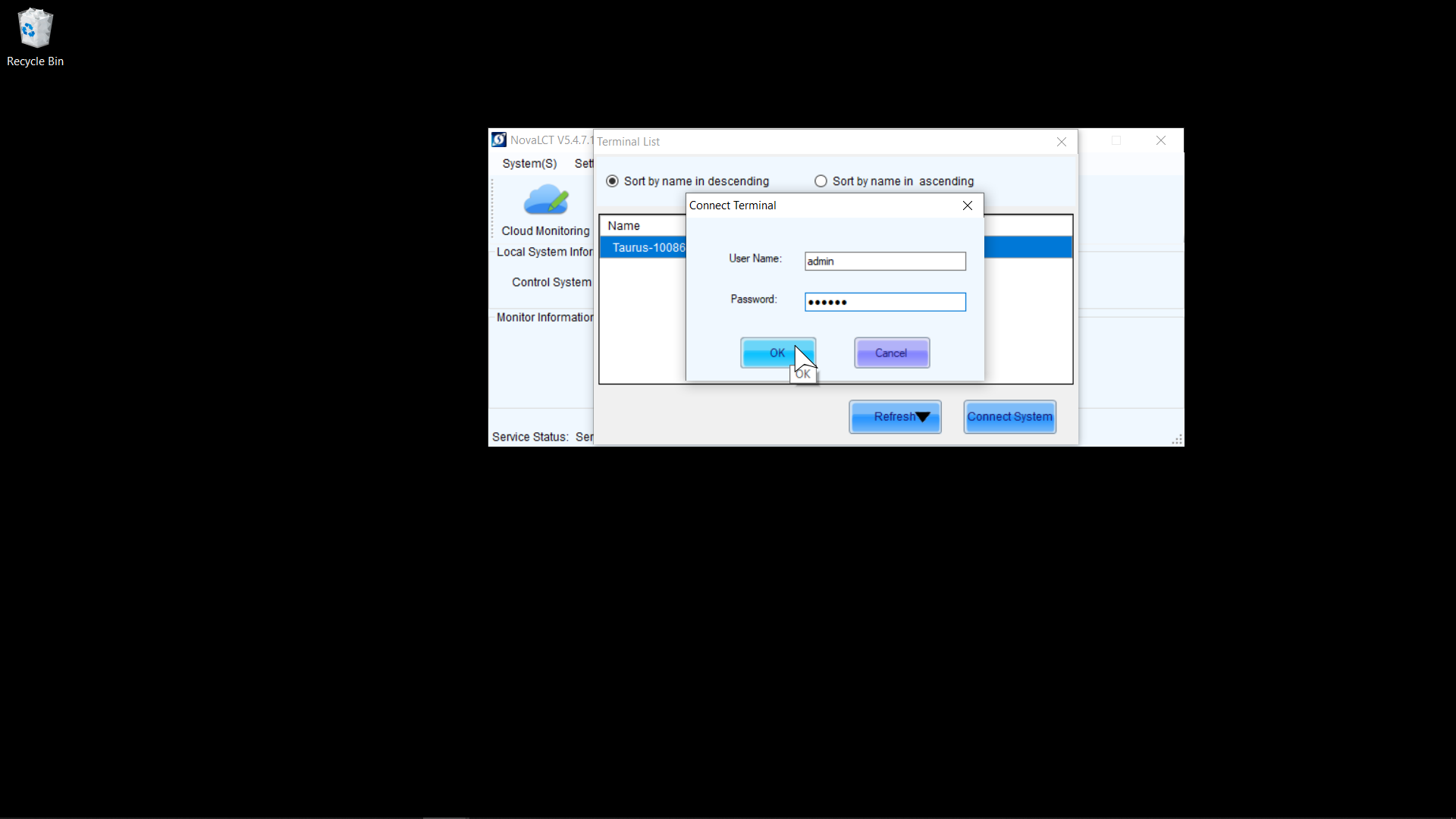

5. Enter Login Credentias and Click Ok

• username: admin
• Password: 123456

6. Click Screen Configuration

7. Click Next

8. Click Screen Connection

9. Set Rows to 6

10. Patch from 6(Bottom) to 1(Top)

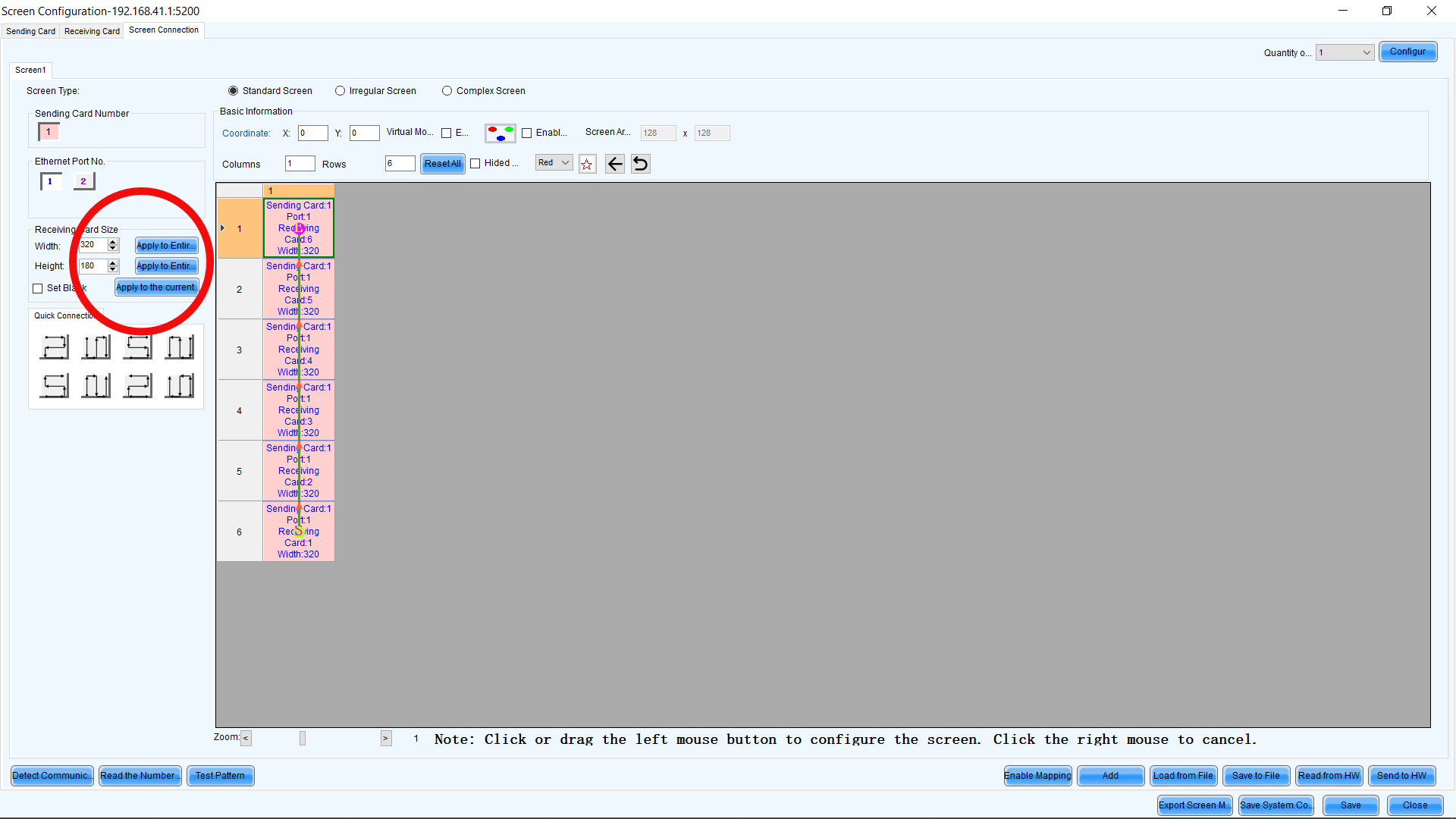

11. Change the Width to 320 and Height to 180, Click all 3 Apply Buttons

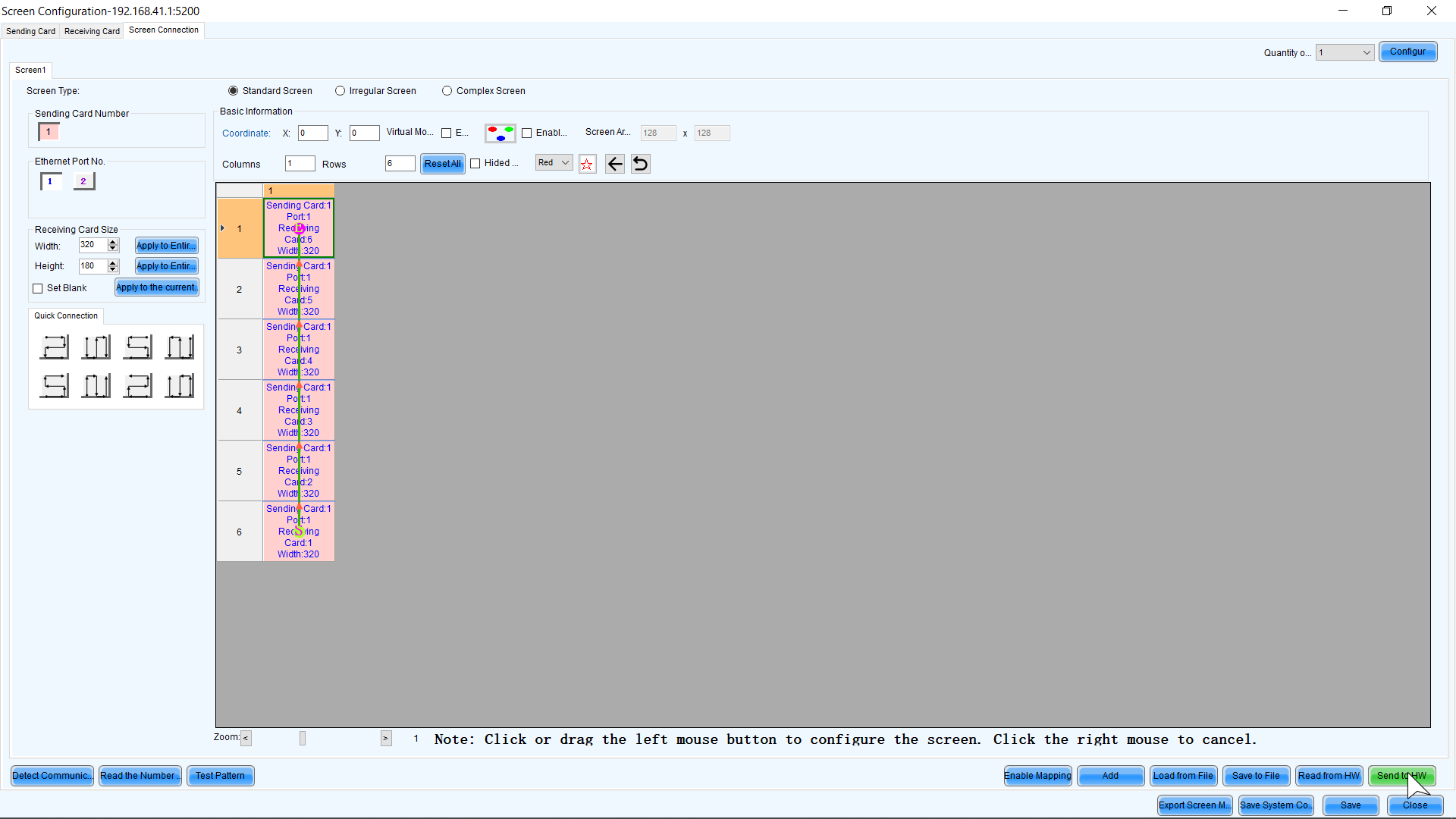

12. Send to HW

13. Save
